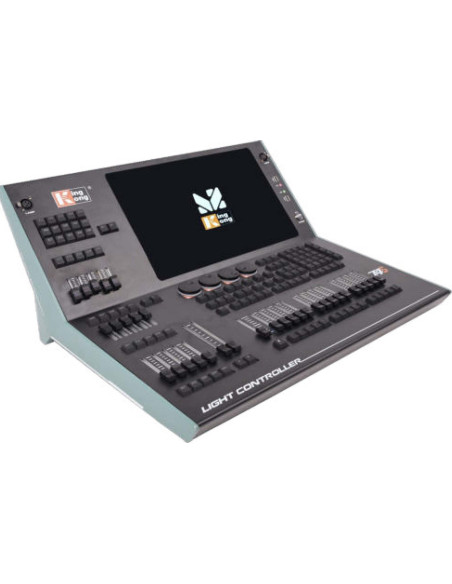

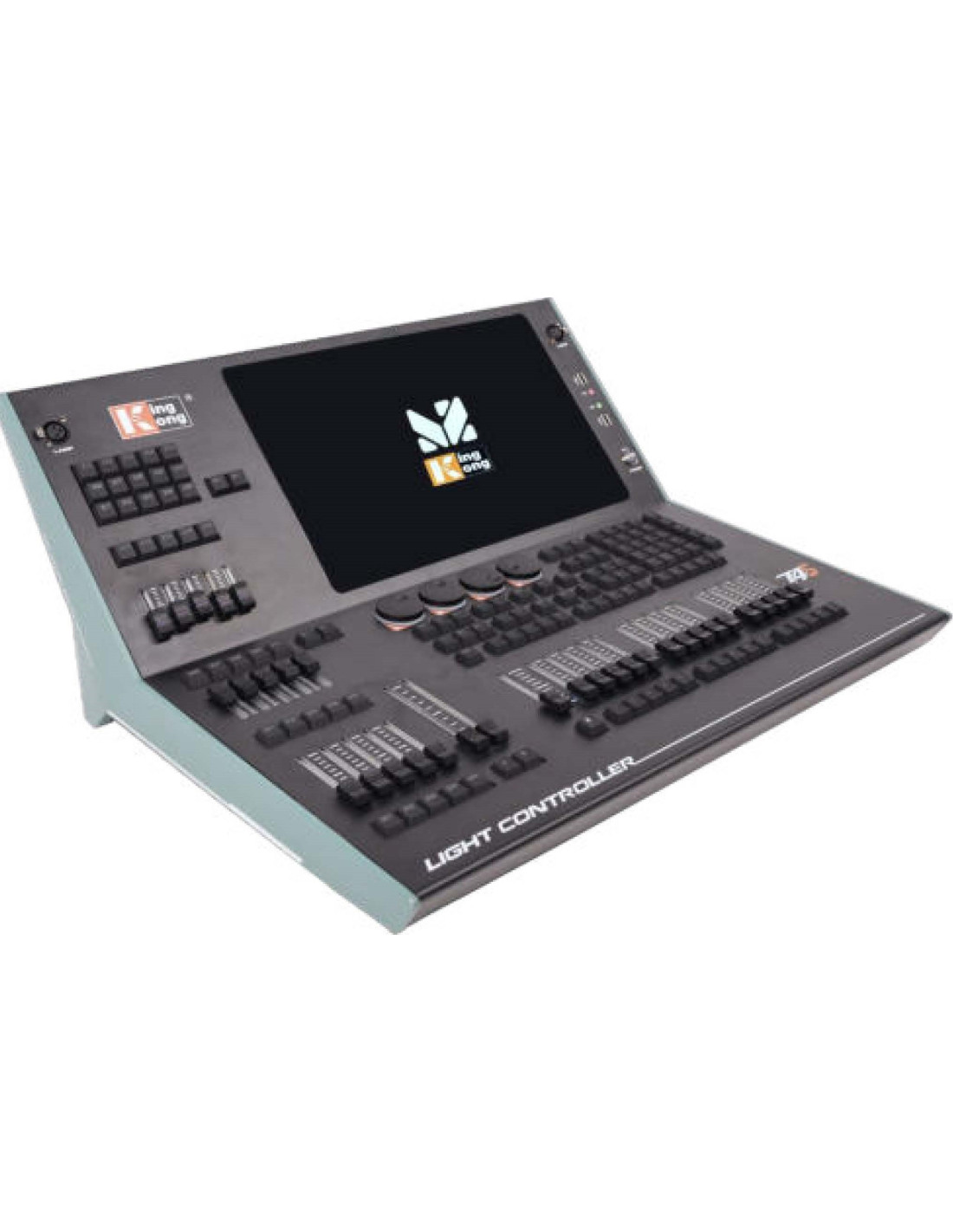

Digital console KingKong T4S

Physical Parameters:

Rated power: 204W

Power supply: AC100-240V, 50-60Hz

Product size / weight: 640×537×276 mm / 13.5 kg

Carton package: 685×605×353 mm / 15.5 kg

Flight case package: 790×724×405 mm

Hardware Parameters:

• Linux OS

• 8GB RAM and 128GB SSD

• 1 blackout fader and 30 backlit faders

• 4 encoders

• Optional UPS battery

• 30 direct-control buttons and 15 scene buttons

• 15.6-inch HD capacitive touchscreen

• Wi-Fi port

• Gigabit Ethernet port

• 4 USB ports

• 2 audio outputs and 2 microphone inputs

• 2 working-light ports

• 12 opto-isolated DMX512 outputs

• HDMI, MIDI, LTC and RS232/RS485 input/output ports

Software Parameters:

• Multi-language interface: simplified/traditional Chinese, English, Korean, Portuguese, Vietnamese, Russian and French

• Visualized touchscreen control of lighting fixtures

• Automatic waveform-graph generation for light shows

• Vector / bitmap functions and on-site layout simulation

• Custom naming for fixture groups, palettes and scenes

• Direct mark & beat-snap functions; auto-fill scenes

• 357 built-in shapes, 31 curves and 6 fans

• RDM management and dual-console linking

• Screen lock and power-on password

• One-key intelligent-control / light-show trigger

• Timer triggers, scheduled shutdown and XML light library

• Remote app control from phone, tablet or wall panel

• Storage: 2,700 playbacks, 400 programs, 2,000 palettes, 300 fixture groups

• Supported protocols: DMX512, TCP/IP, UDP, RS232 and RS485
