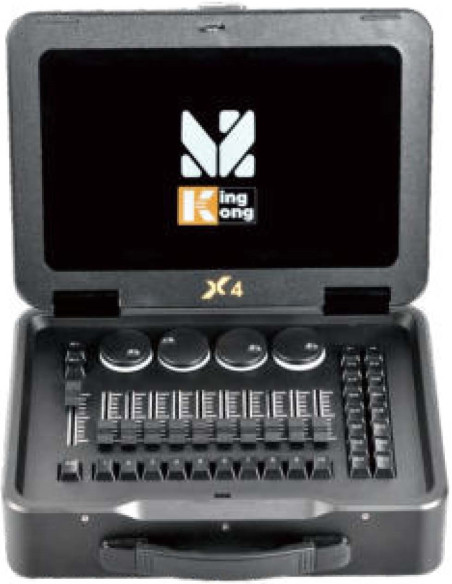

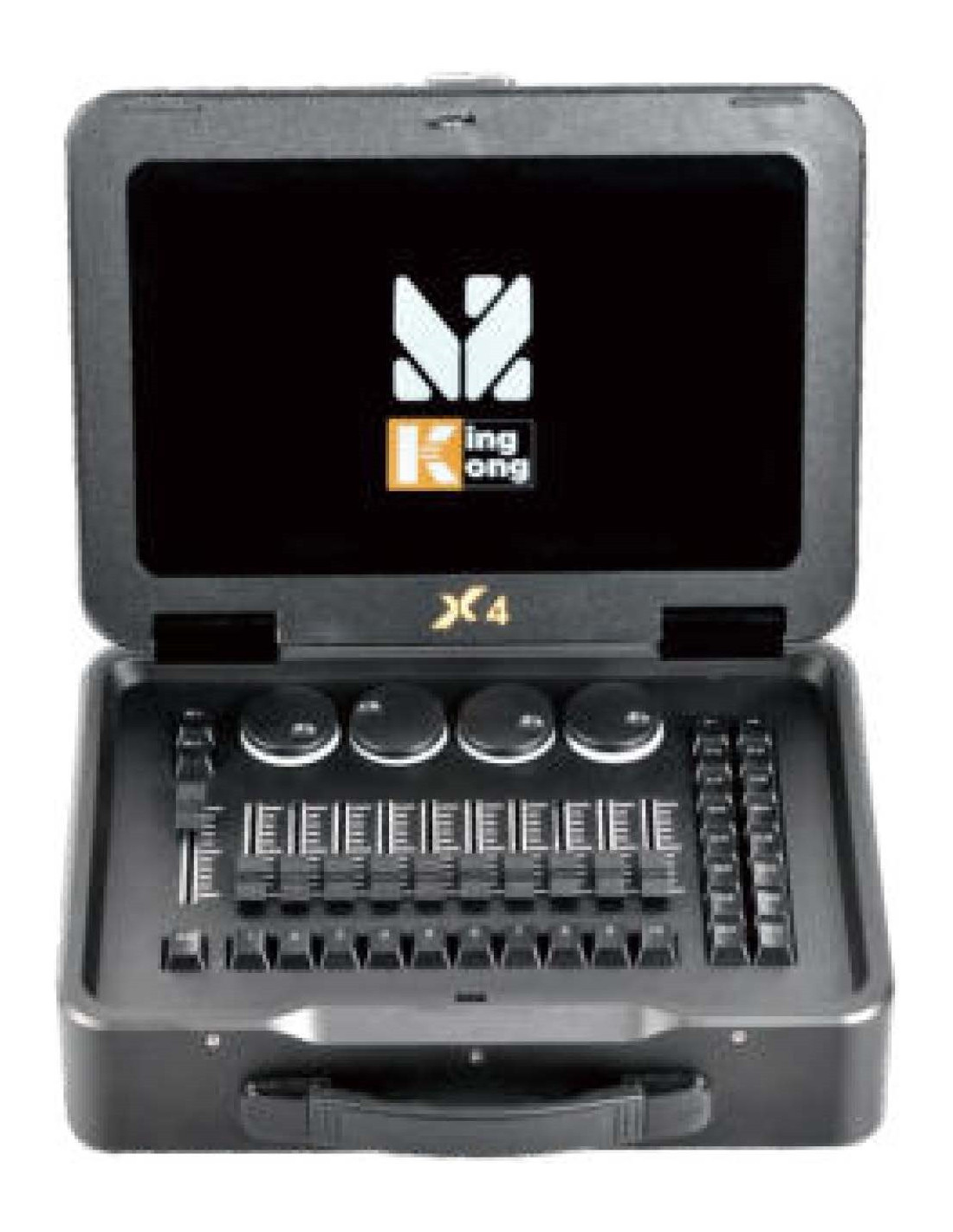

Digital console KingKong BATON X4

Physical Parameters:

Rated power: 72W

Power supply: AC100-240V, 50-60Hz

Product size / weight: 345×265×100 mm / 5.55 kg

Carton package: 520×370×220 mm / 8.3 kg

Hardware Parameters:

• Linux OS

• 8GB RAM and 128GB SSD

• 1 blackout fader and 10 backlit faders

• 4 encoders

• 11.6-inch HD capacitive touchscreen

• Gigabit Ethernet port

• 8 USB ports

• Optional UPS battery

• 4 opto-isolated DMX512 outputs

• HDMI and VGA video ports

• 1 audio output and 1 microphone input

Software Parameters:

• Multi-language interface: simplified/traditional Chinese, English, Korean, Portuguese, Vietnamese, Russian and French

• Visualized touchscreen control, waveform-graph generation and venue-layout simulation

• Custom fixture / palette / scene naming, beat-snap and auto-fill scene functions

• 357 built-in shapes, 31 curves, 6 fans and RDM management

• Dual-console linking, screen lock and power-on password

• Timer trigger, XML light library and remote app control

• Storage: 2,700 playbacks, 400 programs, 2,000 palettes, 300 fixture groups

• Supported protocols: DMX512 and Art-Net
