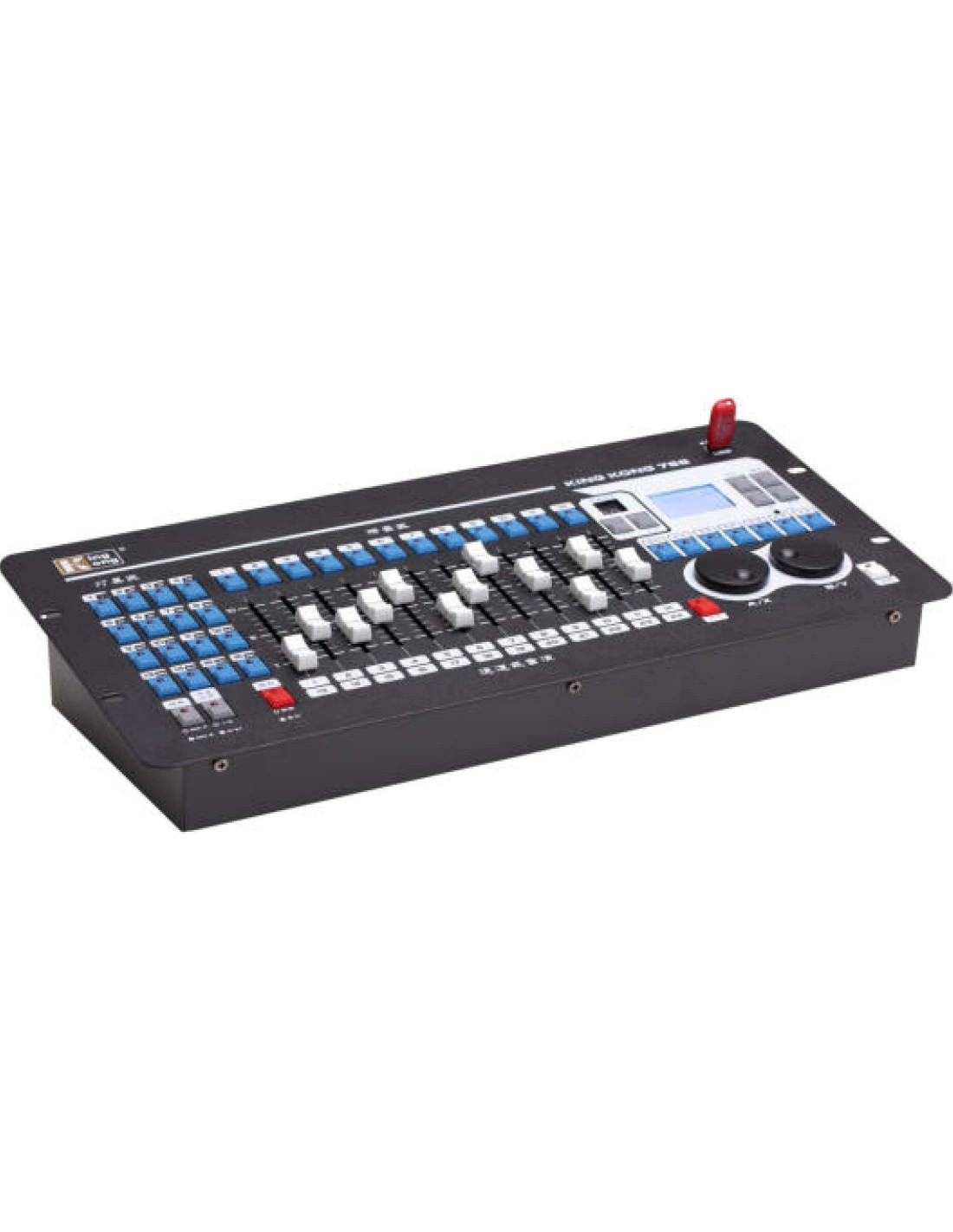

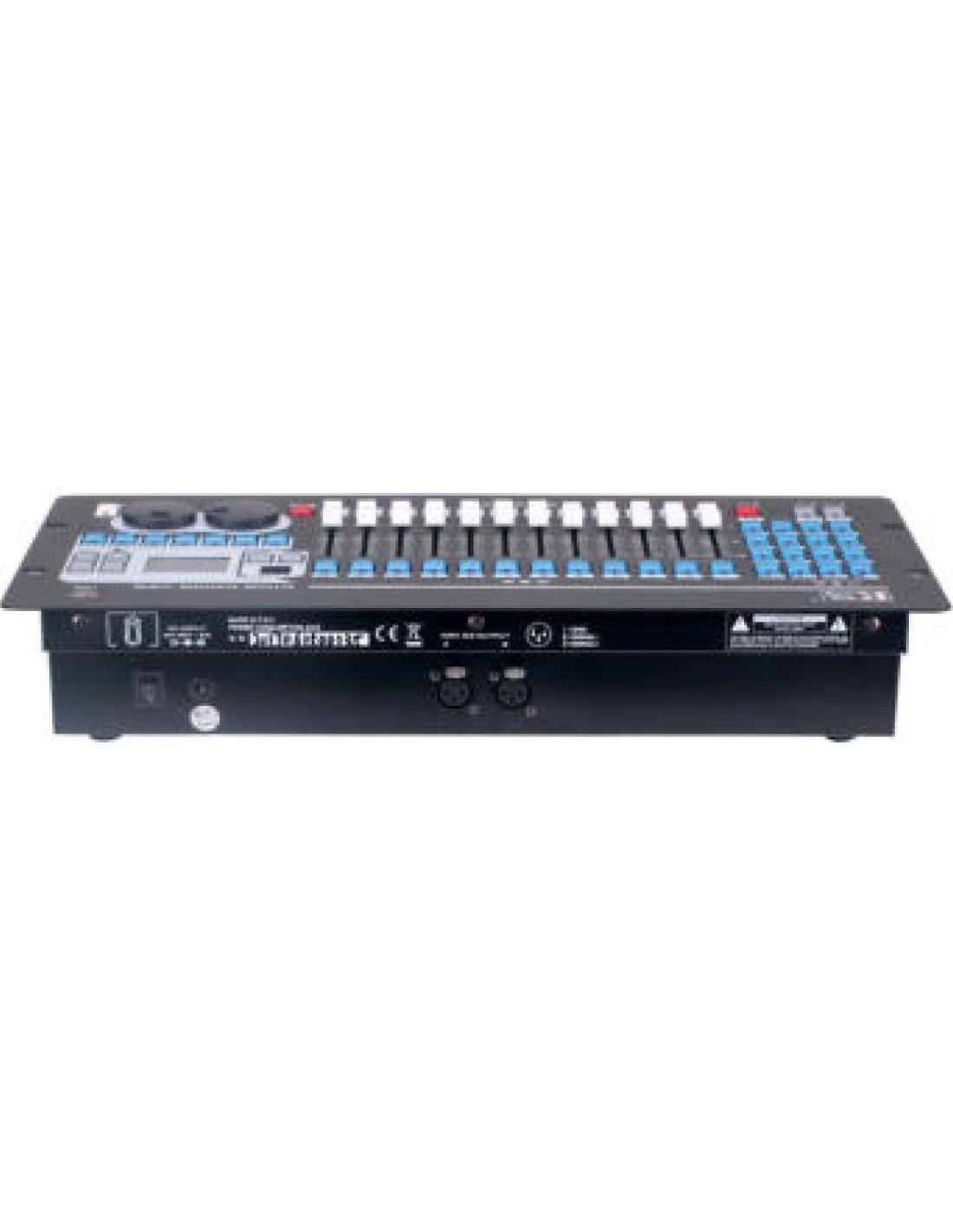

Analog console KINGKONG-768

Physical Parameters:

Rated power: 10W

Power supply: AC100-240V, 50-60Hz

Product size / weight: 485×230×85 mm / 4 kg

Carton package: 565×290×165 mm / 5 kg

Flight case package: 565×290×205 mm / 11 kg

Hardware Parameters:

• 1 blackout fader

• 12 faders

• 2 photoelectric-isolation DMX outputs

• 768 DMX channels

• Preset fader controls fixture attributes

• Backlit LCD screen

• Compatible with centralized control using buttons and faders

• Chinese / English interface switching

• Automatic personality generation

• Remote software upgrade

• Data retained after shutdown / power-off

• 1 USB port for USB-drive backup and import

• Built-in shape and trajectory generator

• Shape-parameter setup

Software Parameters:

• Maximum control: 32 fixtures or 24 dimmers

• 162 built-in shapes, trajectory control and effects

• Storage: 60 playbacks and 600 scene cues

• Backlit LCD screen

• Compatible with centralized control using buttons and faders

• Chinese / English interface switching

• Automatic personality generation

• Remote software upgrade

• Data retained after shutdown / power-off

• 1 USB port for USB-drive backup and import

• Built-in shape and trajectory generator

• Shape-parameter setup
