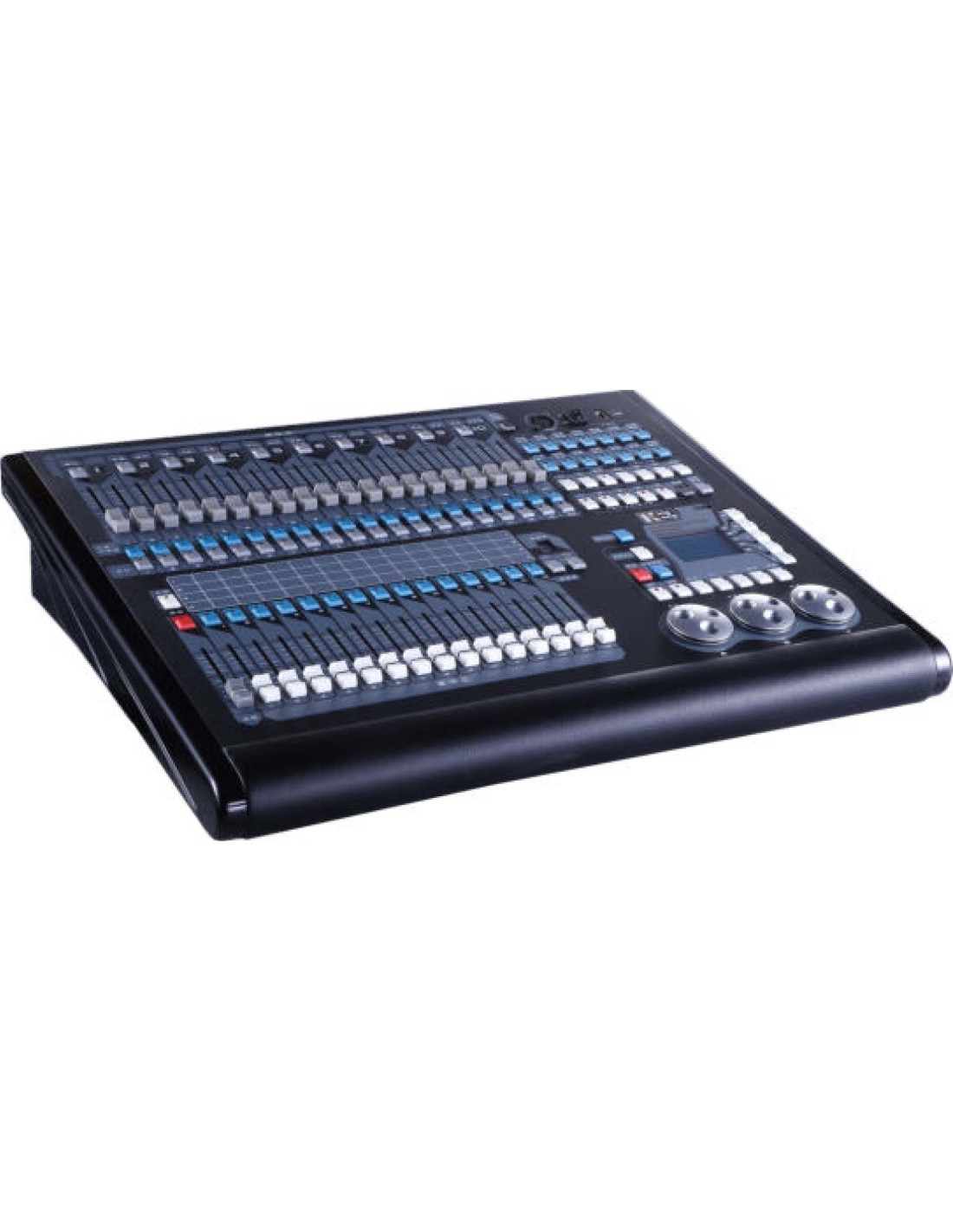

Analog console KINGKONG-2048

Physical Parameters:

Rated power: 15W

Power supply: AC100-240V, 50-60Hz

Product size / weight: 600×460×120 mm / 9.75 kg

Carton package: 690×535×220 mm / 14 kg

Flight case package: 670×550×250 mm / 22.9 kg

Hardware Parameters:

• 1 blackout fader

• 15 faders

• 4 photoelectric-isolation DMX outputs

• 1024 DMX channels

• 1 working light

• 1 Art-Net network port

• Preset fader controls fixture attributes

• Backlit LCD screen

• Compatible with centralized control using buttons and faders

• Chinese / English interface switching

• Automatic personality generation

• Remote software upgrade

• Data retained after shutdown / power-off

• 1 USB port for USB-drive backup and import

• Built-in shape and trajectory generator

• Shape-parameter setup

Software Parameters:

• Maximum control: 200 fixtures or 200 dimmers

• Storage: 100 palettes, 120 playbacks and 600 scene cues

• 227 built-in shapes, trajectory control and effects

• Simultaneous operation: 10 shapes and 10 playbacks

• Mobile app remote control

• R20 personality / built-in personality builder

• Adjustable parameters and program recording

• Address reconfiguration, vertical / horizontal swap and channel-output reverse

• Advanced grouping and overlap function

• UDP command support for scene recall and shutdown

• Backlit LCD screen

• Compatible with centralized control using buttons and faders

• Chinese / English interface switching

• Automatic personality generation

• Remote software upgrade

• Data retained after shutdown / power-off

• 1 USB port for USB-drive backup and import

• Built-in shape and trajectory generator

• Shape-parameter setup
