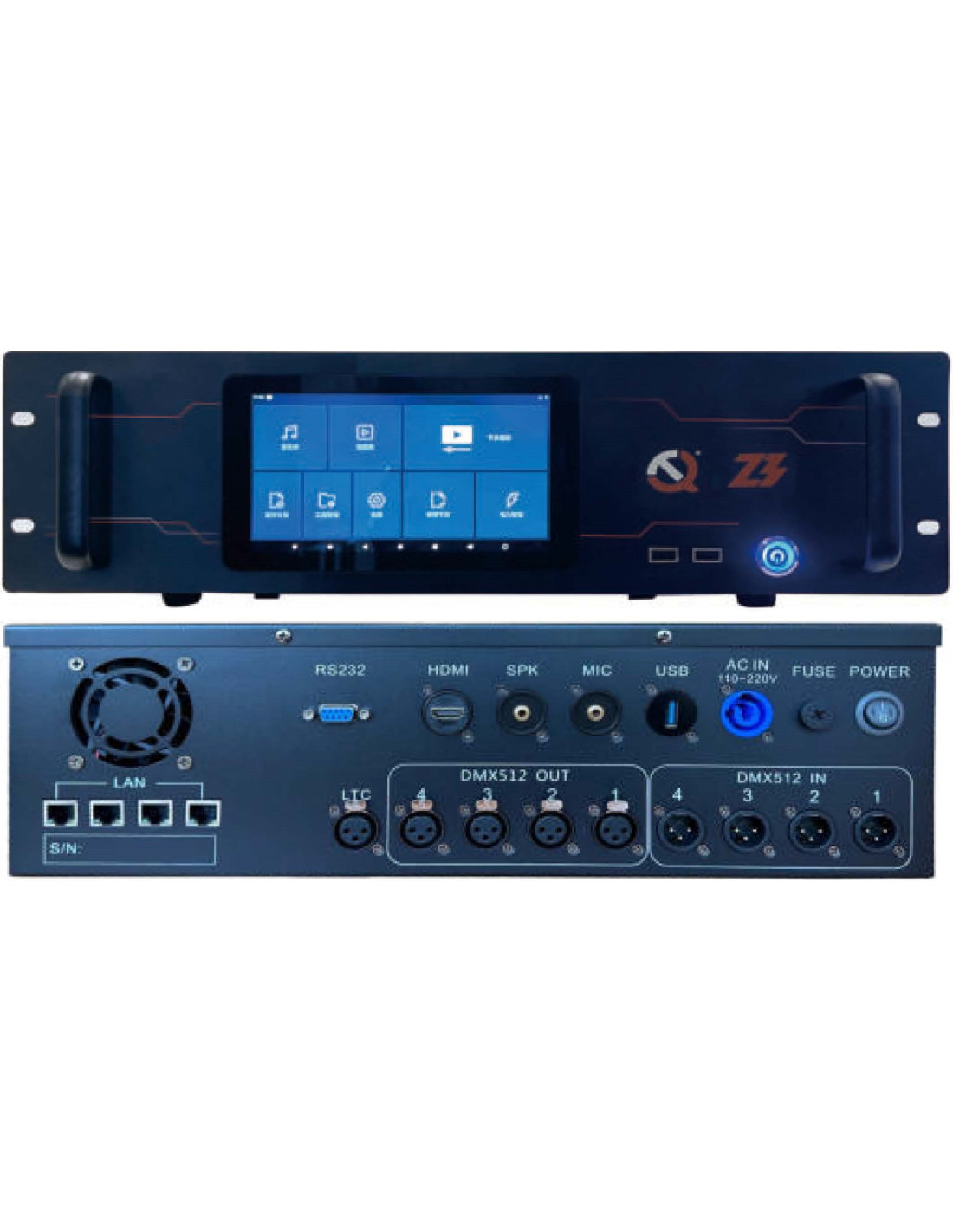

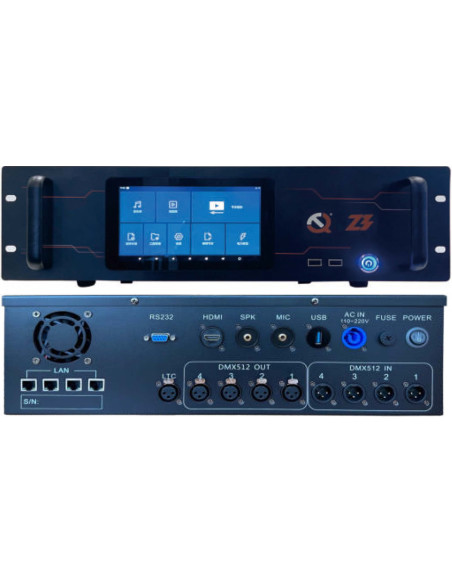

Intelligent control system Z3 DMX recorder

Physical Parameters:

Rated power: 72W

Power supply: AC100-240V, 50-60Hz

Product size / weight: 470×560×200 mm / 8.8 kg

Carton package: 590×525×245 mm / 10.3 kg

Hardware / Software Parameters:

• All-English Android system with integrated memory, processor, hard disk and motherboard

• 4 optically isolated DMX512 inputs for simultaneous recording of 4 universes

• 4 optically isolated DMX512 outputs, expandable to 8; up to 4096 channels

• LTC timecode trigger interface

• 4 Gigabit Ethernet ports for TCP/IP transmission, DMX512 recording and wall-panel control

• RS232 port and project-validity / multi-password intelligent-control locks

• One-touch combined programs for music, video, lighting, power equipment, projectors and peripherals

• Independent control of video, DMX512 files and power; single, loop and random playback

• DMX512 file-recording mode plus phone, tablet and wall-panel app control

• Fader mode for dimmer brightness and position tracking
