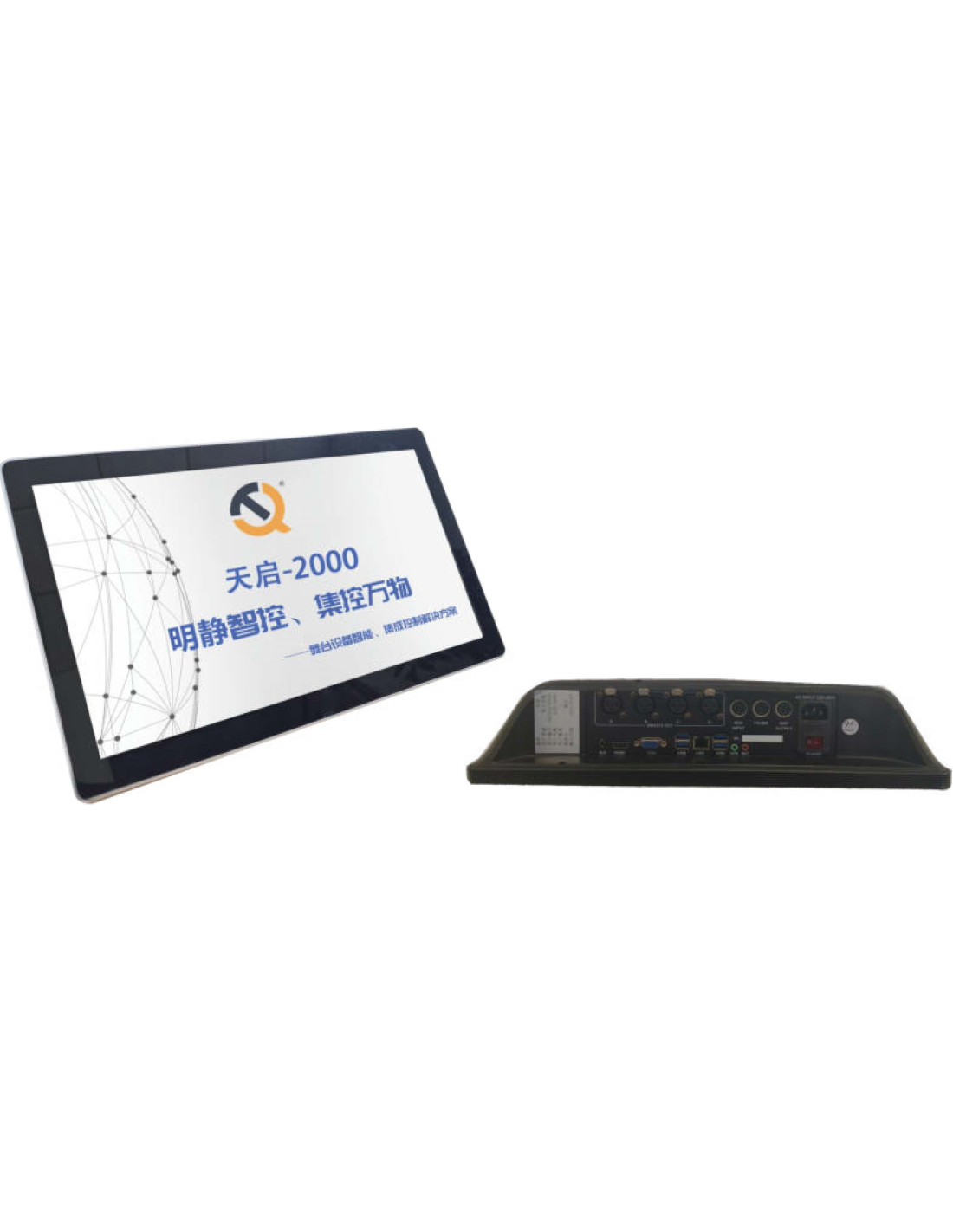

Intelligent control system TQ-2000 DMX recorder

Physical Parameters:

Rated power: 72W

Power supply: AC100-240V, 50-60Hz

Product size / weight: 435×270×100 mm / 4.2 kg

Carton package: 500×415×235 mm / 5.6 kg

Hardware / Software Parameters:

• 17.3-inch ultra-clear capacitive touchscreen with custom text editing and large-screen output

• 4 USB 2.0 ports for keyboard, mouse and media import

• Gigabit Ethernet with TCP/IP and DMX512 communication; central-control integration

• VGA port with multi-screen, split-screen, crop, shift and video preview / record / playback from 1920×1080 to 8K

• 4 DMX512 output ports, total 2048 DMX512 channels; Art-Net expansion to 16 outputs / 8192 channels

• Wireless or wired control; one or multiple programs run simultaneously

• UDP commands, video recording from any console or DMX device, auto power-on and timed unattended operation

• YingHuo digital-power-dimmer integration, timed power schedule and cloud 5G remote control
