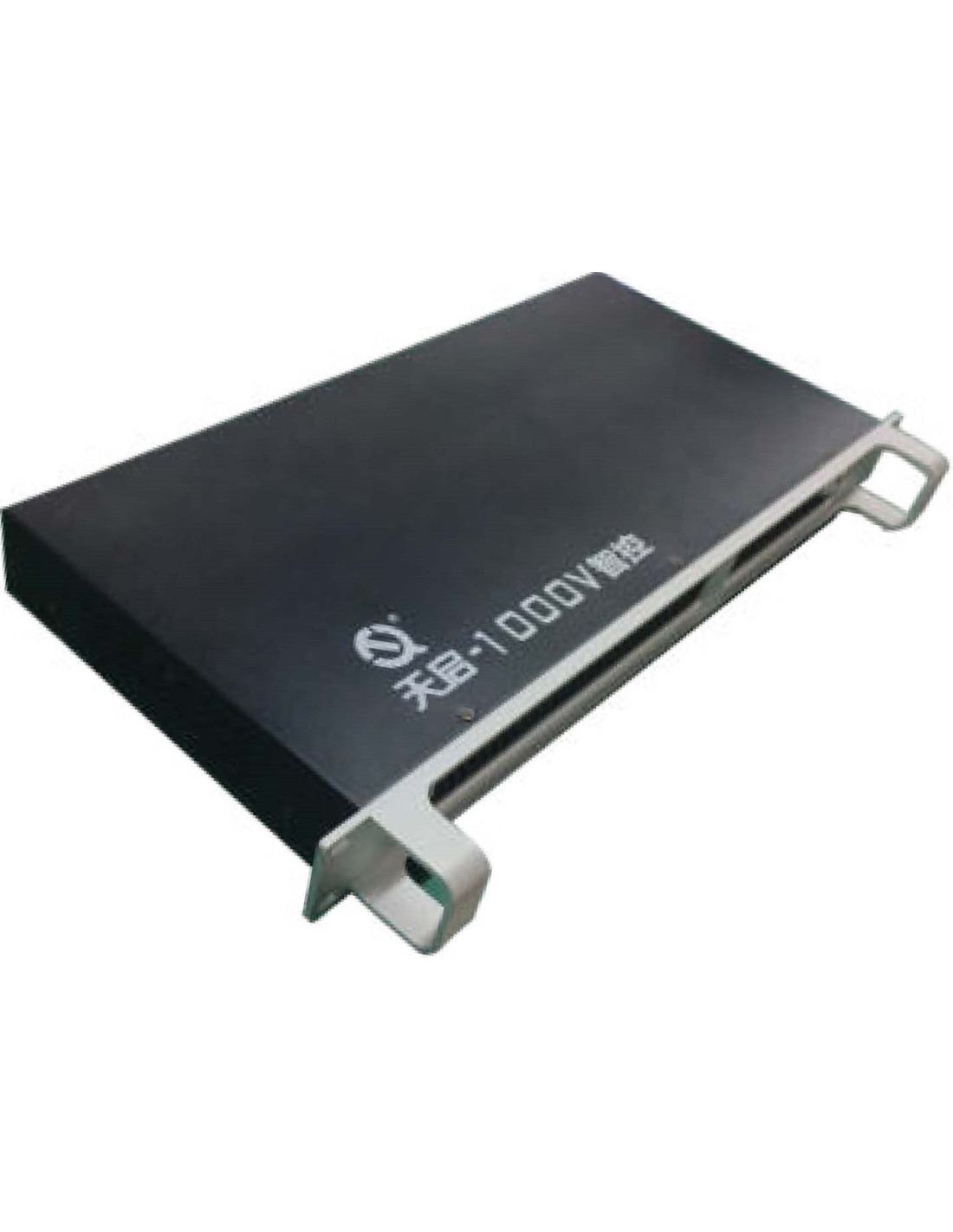

Intelligent control system TQ-1000V DMX recorder

Physical Parameters:

Rated power: 72W

Power supply: AC100-240V, 50-60Hz

Product size / weight: 483×245×55 mm / 2.9 kg

Carton package: 550×312×110 mm / 3.9 kg

Hardware / Software Parameters:

• TQ-1000V: 8GB RAM and 120GB SSD

• Industrial-grade motherboard, Intel i3 processor

• 4 photoelectric-isolation DMX outputs

• 1 LAN port with TCP/IP protocol

• 1 VGA and 1 HDMI port

• Standard MIDI-control port with timecode-trigger program execution

• 4 USB ports

• 1 audio and 1 microphone port

• Simple operation; pre-installed Windows Professional

• Automatic King Kong DMX recording and playback software at startup

• Wireless control via mobile phone and tablet; central-control device support

• Pre-installed TQ intelligent-control software and tutorial videos

• Timed playback / end; single or loop playback modes for unattended operation

• Supports single or simultaneous running of multiple programs

• Timeline show editor for precise matching and playback of different materials

• Screen splitting and simultaneous playback of multiple videos
